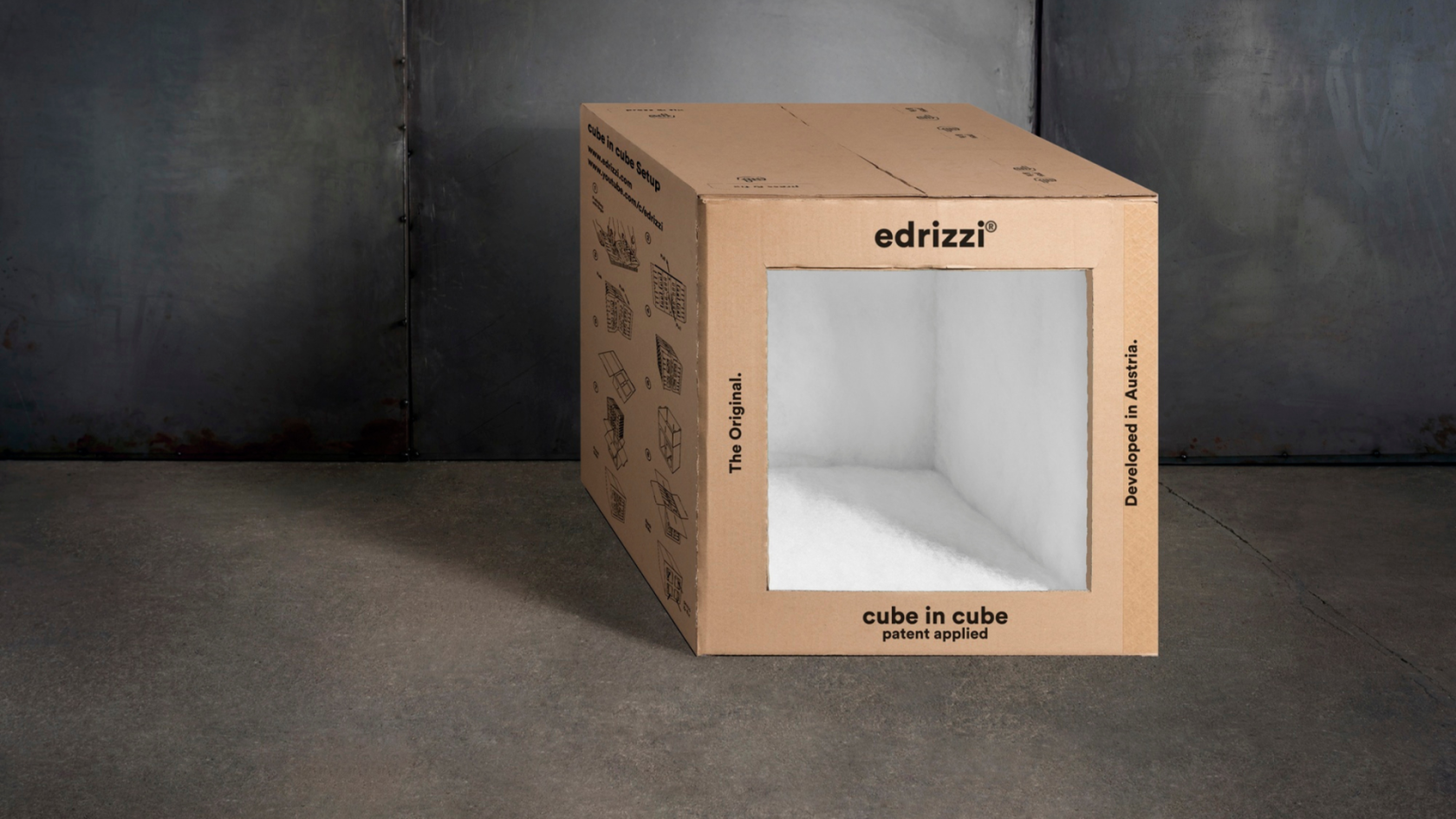

Cube in Cube –
the additional filter solution
in the edrizzi® system
With the new ‘Cube in Cube’ module, Brainflash Patententwicklungs GmbH closes an important gap in the edrizzi® system. The filter was specially developed for dry and dusty oversprays and impresses with its high efficiency at low initial pressure differences.
Damit erweitert der „Cube in Cube“ die The ‘Cube in Cube’ thus expands the application possibilities of the modular edrizzi® system and offers even more flexibility in painting technology.
Versatile application options
- Can be used as a paint mist separator in the first filter stage.
- Or as a CUBE02 post-filter variant behind an edrizzi® Vario – for maximum service life and separation performance.
Technical features at a glance
- Very low initial pressure difference (10 Pa) → energy-efficient operation
- Filter area 0.85 m² made of naffi® filter fleece, stabilised by outer cardboard
- Space-saving delivery in flat condition, easy handling
- Modular design, fully compatible with the edrizzi® system
Sustainable choice of materials
The naffi® filter medium used is made from 100% recycled polyester, is glass fibre-free and can be processed without personal protective equipment. As a result, the ‘Cube in Cube’ not only improves occupational safety, but also sustainability in the painting process.
Successful practical tests in the edrizzi® system
The ‘Cube in Cube’ has already been successfully tested in the furniture and automotive industries. The tests showed that in many cases no additional post-filter stage was required – clear proof of the high separation efficiency of the new module.
About the edrizzi® system
The edrizzi® system has been used in paint shops worldwide since 2003. With up to 97% separation efficiency, modular design and easy handling, it is one of the most flexible solutions for surface finishing.
Lear nmor about the edrizzi System
Mit dem „Cube in Cube“ setzen wir einen neuen Standard für staubige Oversprays und Anwendungen mit niedriger Anfangsdruckdifferenz.
With the ‘Cube in Cube’, we are setting a new standard for dusty oversprays and applications with low initial pressure differences.
Discover all the system components of the edrizzi® system.
